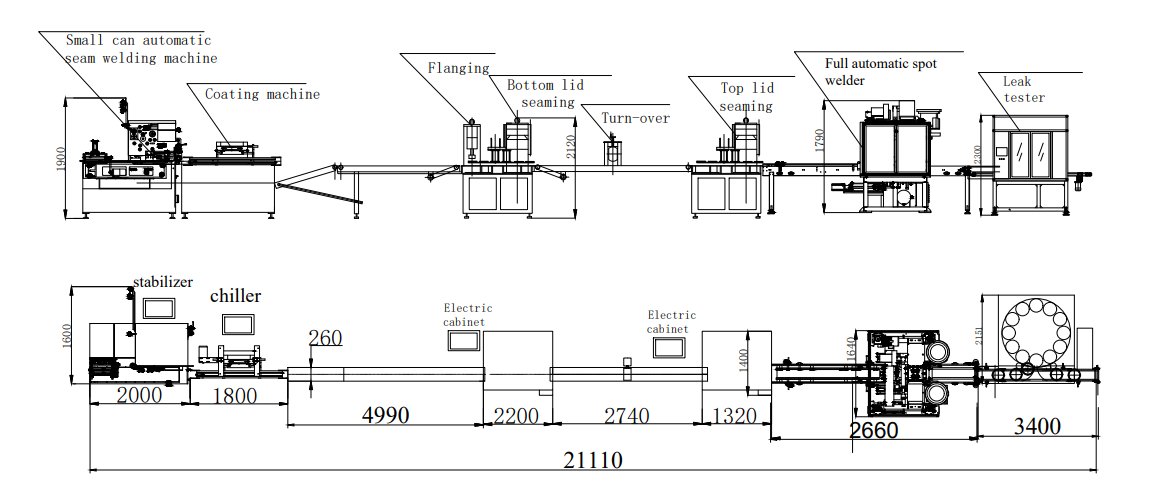

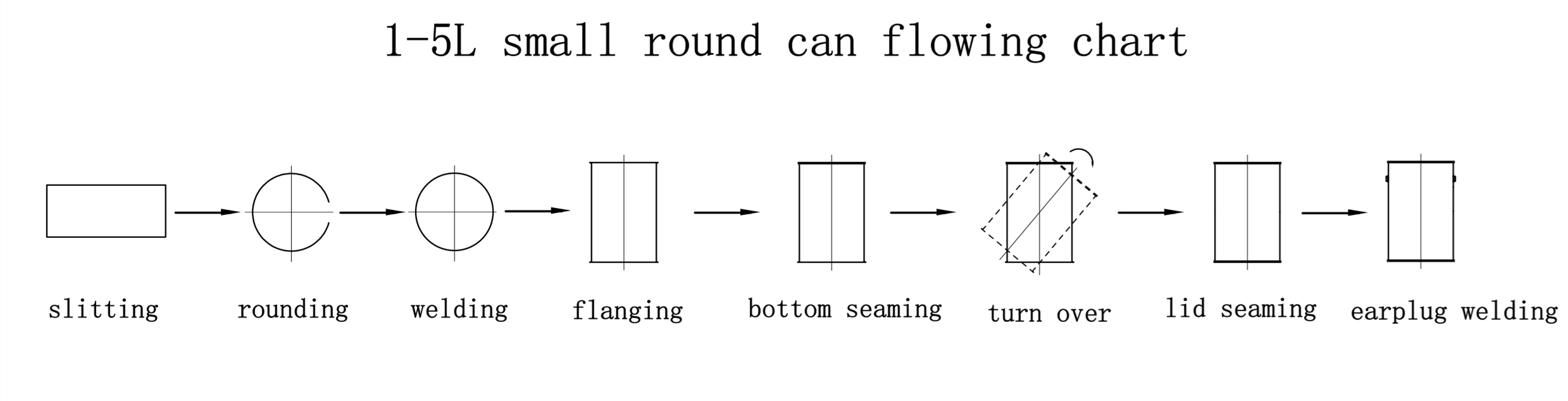

First place the cut can body materials into the automatic resistance welding machine’s feeding table, Suck by the vacuum suckers,send the tin blanks to the feeding roller one by one.through the feeding roller, the single tin blank is fed to the rounding roller to conduct rounding process, then it will be fed to the rounding forming mechanism to make rounding.The body is fed into the resistance welding machine and make welding after the accurate positioning. After welding, the can body is automatically fed into the rotary magnetic conveyor of the coating machine for outer coating, inner coating or inner powder coating, Which depends on customer’s various need.It is mainly used to prevent the side welding seam line from being exposed in air and rusting.The can body is then fed to the combination machine,It is in an upright state going through the uprighting conveyor.and is sent to flanging station by clamps.The flanging task is finished by bumping of upper and lower flanging mold.After that, the flanged can body is sent to automatic bottom lid feeder,through the detecting sensor detecting the coming can body, the lid feeder will automatic feed the bottom lid to the top of can body and both of them are sent to the position under the seaming chunk, the lifting tray sends the can body and bottom to the seaming machine head to seal. After one end seaming,It is sent to can body turner to turn the can body over,Then conduct again the automatic top lid detecting and seaming. Lastly,it is fed to automatic double spots ear lug welding machine,through automatic side welding seam indexing, Cam conveyor conveying, mechanic paint breaking, also equipped with automatic ear lugs vibrating discs,finish accurate welding task on small round can.Lastly,the finished can is fed by conveyor to automatic leak tester station.After accurate air source inspection, unqualified products are detected and pushed to a fixed area, and qualified products will come to the packaging workbench for the final packaging.

Advantages: the whole production line adopts automatic computer programming control system, fully realizing the full automatic assembly line work.Only 1-2 workers are needed to complete the operation of the entire production line.The whole production line has fast production speed, high production efficiency, automatic fault detection system and low rejection rate.

Disadvantages: compared to semi-automatic production line, the initial investment capital is larger. For the start-up enterprises, it is recommended to use semi-automatic production line with less capital in.

YiXin products: the whole production line is suitable for a variety of can types in a production line factory. The cost of mold is low and the time of mold replacement is short. It only takes 1.5-2 hours to complete the replacement of all the molds. At the same time, the machine head adopts special design, which has the characteristics of low noise and high production speed.

Peer products: the whole production line only produces one can type, the mold cost is high, the time of changing the mold is long, it takes 1-3 days to complete the replacement of all the molds. The machine head adopts the old design and the production noise is large.

This production line is applicable to the production of metal round cans for food, medicine, chemical industry, paint, cooking oil and other industries. It can also be used in the production of food cans, paint cans, edible oil cans, paint cans, milk powder cans, aerosol cans, etc.

Applicable to countries or regions where labor is difficult, unstable, or highly paid. For example: malaysia, indonesia, philippines, vietnam, thailand, india, dubai and so on.

Applicable to countries or regions with high output and high product quality. For example: saudi arabia, dubai, russia, canada, south korea, turkey and so on.

• Established 20 years ago, Yixin technology is a well-known brand in the Chinese industry.
• More than 80% of customers in China have used Yixin products.
• Yixin technology has a strong technical team and professional after-sales service to provide customers with turnkey project and one-stop service.
• Once choosing Yixin technology products, Yixin technology will provide you with the most professional technical advice and guidance from material selection, printing and typesetting, installation, commissioning to smooth production
